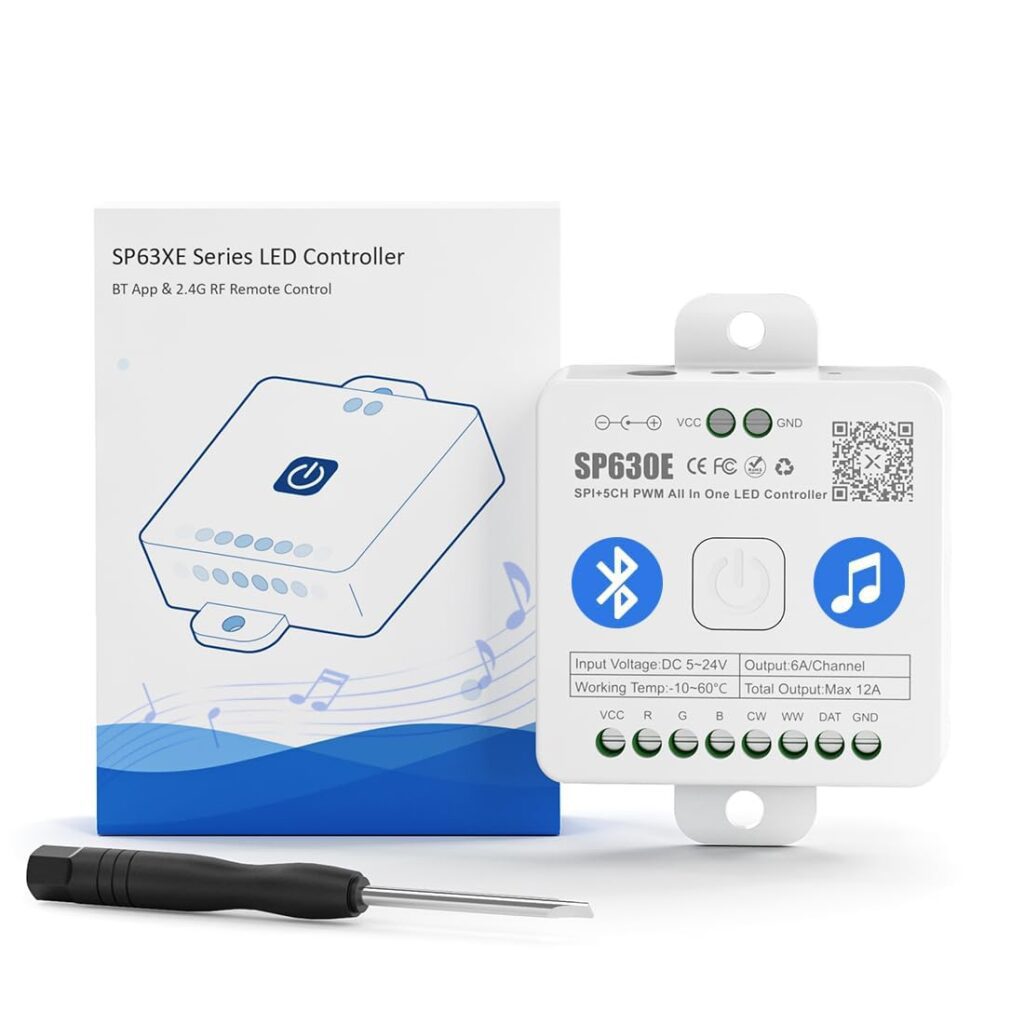

BTF-LIGHTING SP630E Bluetooth LED Controller Support PWM Monochrome CCT RGB RGBW RGBCCT Or SPI TTL IC Chip LED Strip WS2811 WS2812B WS2813 WS2814 WS2815 SK6812 LB1934 etc DC5V DC12V DC24V SP630E Bluetooth Controller
If you’re building a custom LED setup and want one controller that can cover a lot of strip types, the BTF-LIGHTING SP630E is a flexible Bluetooth option. It supports common PWM (no IC chip) strips like single color, CCT, RGB, RGBW, and RGBCCT wiring formats, and it also supports many SPI TTL addressable IC chip strips such as WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812, and LB1934.
You can view the current price and full details on Amazon here.
For mixed installs, SP630E can control SPI + PWM LED strips at the same time—useful if you want addressable RGB effects alongside a separate non-addressable white or CCT strip. Control is handled through the Banlan X app over Bluetooth, with interfaces for static effects, dynamic effects, and music effects. You also get timing (up to 5 timers) and memory so your settings can return after power-down.
Power is supplied via DC (5V/12V/24V) using a 5.5mm x 2.1mm DC power jack. Make sure your power supply matches your LED strip voltage (for example, use a 5V supply with 5V strips). Note: it does not support data+clock LED strips like SK9822 or WS2801, and monochrome/CCT modes do not support DIY light effects.
Supports PWM (non-IC) LED strips: monochrome (2-pin), CCT (3-pin), RGB (4-pin), RGBW (5-pin), and RGBCCT (6-pin)
Supports SPI TTL addressable strips (3-pin or 4-pin) including WS2811/WS2812B/WS2813/WS2814/WS2815, SK6812, LB1934 (not for data+clock types like SK9822/WS2801)
Can control SPI + PWM LED strips at the same time for mixed lighting setups
Bluetooth app control (Banlan X) with static, dynamic, and music effect interfaces
Built-in microphone plus other music collection methods; includes timers (up to 5) and power-down memory
DC 5V/12V/24V input via 5.5mm x 2.1mm DC jack; rated 6A/channel, 12A max
Color calibration to better match in-app color to actual strip output
